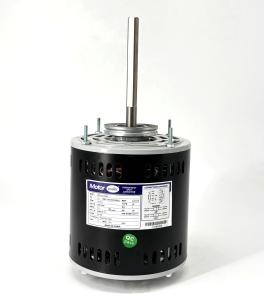

48 Frame Direct Drive Blower Motor - 1/2HP 1075RPM/3SPD 208-230V 60HZ

Brand Name : trusTec

Model Number : YDK-375-6B15-VPS

Certification : CE、UL529388

Place of Origin : Changzhou, China

MOQ : 200 pcs

Price : Negotiable (FOB/CNF/CIF)

Payment Terms : T/T, L/C

Supply Ability : 100,000 pcs per month

Delivery Time : 15 days fresh products after order confirmation.

Packaging Details : Standard carton packing, foam board inside for protection.

Product : Blower Fan Motor

Frame : Nema 48

Motor Type : Permanent Split Capacitor

Supply Voltage : 208-230V

Enclosure Type : OAO(Open Air Over)

Supply Frequency : 60Hz

Thermal Overload : Equipped With An Automatic Thermal Overload

Current : 2.9A

Phase : Single Phase

Output HP : 1/2HP

Shaft Flat : Right Angle Flat

Speed : 1075RPM/3SPD

Mounting Orientation : All Angle

Capacitor : 10uF/370V

Insulation Class : Class B

Pole : 6P

Bearings : Ball Bearing

Shaft Diameter : 12.7mm/0.5"

Rotation : CW/CCW

Flat Length : 101.6mm/4"

Max. Ambient Temperature : 50℃/122℉

Lead Length : 24.01"/610mm

Motor Shell Length : 142mm/5.59"

Screw Length : 14mm/0.55"
